Screen printing Roland SH-1000 (main panel)

This product is intended for those who wish to restore the panel of their classic Roland SH-1000 synthesizer, which commonly deteriorates over time.

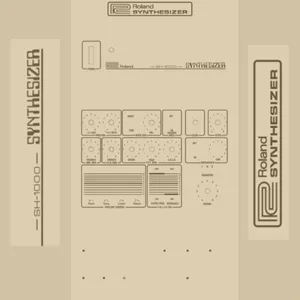

The artwork is a reproduction of the silkscreen on the side panel of this synthesizer (main panel only).

It is provided in high resolution in PDF format, without any compression.

It should be printed on a single 25 cm x 48 cm screen for screen printing application. The aspect ratio of the artwork should not be altered, as this would affect all dimensions involved.

Application to the panel should be done in 4 stages:

1- General silkscreen of the potentiometers

2- Silkscreen of the power/logo

3- Blue circles

4- Rear logo

Professional application is recommended.

The artwork should be applied to an original panel of the Roland SH-1000 synthesizer in perfect condition, restored to black color.

Although thoroughly tested, it is recommended to print the artwork on a transparent sheet for testing on your unit. While unlikely, small measurement discrepancies between models may exist. We do not take responsibility for these variations.

The product does not include the physical panel, only the digital artwork for the silkscreen. It's for personal use and should not be distributed or resold.
